 CX402-VFCxxx |
 CX402-xxM |
|
|||
Who is this for? |
Required to follow VFC & CDC requirements specifically
|
Required to follow GDP & GMP requirements specifically
|
Required to follow GDP & GMP requirements specifically
|
Required to follow GDP & GMP requirements specifically
|
Required to follow GDP & GMP requirements specifically
|
Required to follow GDP & GMP requirements specifically
|
What does it monitor? |
Temperature with probe and glycol bottle and ambient room temperature |
Ultra low temperature with probe only and ambient room temperature |
Temperature with probe only and ambient room temperature |
Temperature with probe and glycol bottle and ambient room temperature |
Ambient Temperature and Relative Humidity |
Ambient Room Temperature |
NIST Calibration |
One point NIST calibration - probe only |
Two point NIST calibration - Probe only |
One point NIST calibration - Probe and internal ambient sensor |
One point NIST calibration - Probe and internal ambient sensor |
Two point NIST calibration - Internal ambient sensor only, temp & humidity (2 points each) |
One point NIST calibration - Internal ambient sensor only |
NIST Expiration |
3 year NIST certificate - As recommended by VFC/CDC |
1 year NIST certificate - As recommended by GDP/GMP |
1 year NIST certificate - As recommended by GDP/GMP |
1 year NIST certificate - As recommended by GDP/GMP |
1 year NIST certificate - As recommended by GDP/GMP |
1 year NIST certificate - As recommended by GDP/GMP |
NIST Points |
Probe: 5.0°C (41.0°F)
|
Probe Point 1: -70.0°C (-94.0°F)
Probe Point 2: 5.0°C (41.0°F)
|
Probe: 5.0°C (41.0°F)
Internal Sensor: 25.0°C (77.0°F)
|
Probe: 5.0°C (41.0°F)
Internal Sensor: 25.0°C (77.0°F)
|
Int. Sensor Point 1: 0°C (32.0°F)
Int. Sensor Point 2: 40.0°C (104.0°F)
Humidity Point 1: 35.0% @ 25.0°C Humidity Point 2: 75.0% @ 25.0°C |
Internal Sensor: 25.0°C (77.0°F)
|
Compliance Marks |
|
|
|
|
|
|
|
Passed RTCA DO160G, part 21H |
Passed RTCA DO160G, part 21H |
Passed RTCA DO160G, part 21H |
Passed RTCA DO160G, part 21H |
N/A
|
Passed RTCA DO160G, part 21H |
|
External Temperature Probe |
||||||
Range |
-40° to 100°C (-40° to 212°F)
|
-95° to 50°C (-139° to 122°F)
|
-40° to 100°C (-40° to 212°F)
|
N/A
|
N/A
|
N/A
|
Accuracy |
±1.0°C from -40° to -25°C (±1.8°F from -40° to -13°F)
±0.5°C from -25° to 80°C (±0.9°F from -13° to 176°F)
±1.0°C from 80° to 100°C (±1.8°F from 176° to 212°F)
|
±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
|
±1.0°C from -40° to -25°C (±1.8°F from -40° to -13°F)
±0.5°C from -25° to 80°C (±0.9°F from -13° to 176°F)
±1.0°C from 80° to 100°C (±1.8°F from 176° to 212°F)
|
±1.0°C from -40° to -25°C (±1.8°F from -40° to -13°F)
±0.5°C from -25° to 80°C (±0.9°F from -13° to 176°F)
±1.0°C from 80° to 100°C (±1.8°F from 176° to 212°F)
|
N/A
|
N/A
|
Resolution |
0.024°C at 25°C (0.04°F at 77°F)
|
0.05°C at 25°C (0.09°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
N/A
|
N/A
|
NIST Calibration |
Single point NIST calibration, probe only |
Two-point NIST calibration, probe only |
Single point NIST calibration, probe and logger body |
CX40x-Txx and CX402-BxM: Single point NIST calibration, probe and logger body CX40x-VFCxxx: Single point NIST calibration, probe only CX403: Single point NIST calibration |
N/A
|
N/A
|
Cable Length |
2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable |
1.5 m (4.92 ft)
|
2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable |
2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable |
N/A
|
N/A
|
Probe Dimensions |
Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter |
Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter |
Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter |
Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter |
N/A
|
N/A
|
Temperature Sensor |
||||||
Range |
-30° to 70°C (-22° to 158°F)
|
-30° to 70°C (-22° to 158°F)
|
-30° to 70°C (-22° to 158°F)
|
-30° to 70°C (-22° to 158°F)
|
-30° to 70°C (-22° to 158°F)
|
-30° to 70°C (-22° to 158°F)
|
Accuracy |
±1.0°C from -30° to -22°C (±1.8°F from -22° to -8°F)
±0.5°C from -22° to 50°C (±0.9°F from -8° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
|
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
|
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
|
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
|
±0.5°C from -30° to 70°C (±0.9°F from -22° to 158°F)
|
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
|
Resolution |
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|
0.024°C at 25°C (0.04°F at 77°F)
|

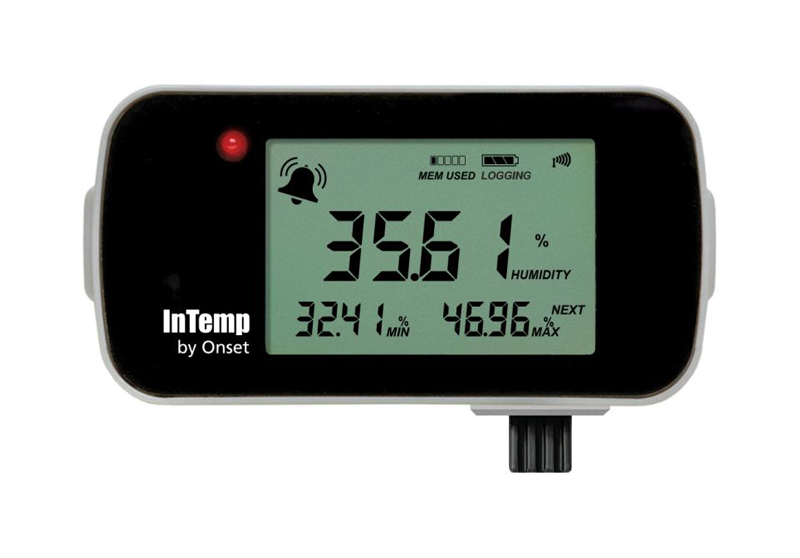

RH Sensor |
||||||
| Range |
N/A
|
N/A
|
N/A
|
N/A
|
0 to 95% (non-condensing) |
N/A
|
| Accuracy |
N/A
|
N/A
|
N/A
|
N/A
|
±3% from 0% to 90% and ±3.5% from greater than 90% typical at 25°C (77°F) |
N/A
|
| Resolution |
N/A
|
N/A
|
N/A
|
N/A
|
0.01% |
N/A
|
Data Logger |
||||||
| Logger Operating Range |
-30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
|
-30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
|
-30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
|
-30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
|
-30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
|
-30° to 70°C (non-condensing)
|
| Environmental Rating |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
| Logging Rate |
1 second to 18 hours |
1 second to 18 hours |
1 second to 18 hours |
1 second to 18 hours |
1 second to 18 hours |
1 second to 18 hours |
| Transmission Range |
Approximately 30.5 m (100 ft) line-of-sight |
Approximately 30.5 m (100 ft) line-of-sight |
Approximately 30.5 m (100 ft) line-of-sight |
Approximately 30.5 m (100 ft) line-of-sight |
Approximately 30.5 m (100 ft) line-of-sight |
Approximately 30.5 m (100 ft) line-of-sight |
| Memory |
128 KB (84,650 measurements, maximum) |
128 KB (75,245 total measurements or 37,622 probe & internal paired measurements) |
128 KB (84,650 measurements, maximum) |
128 KB (84,650 measurements, maximum) |
178 KB (103,400 total measurements or 51,700 temp & RH paired measurements) |
128 KB (84,650 measurements, maximum) |
| Full Memory Download Time |
Approximately 60 seconds; may take longer the farther the device is from the logger |
Approximately 60 seconds; may take longer the farther the device is from the logger |
Approximately 60 seconds; may take longer the farther the device is from the logger |
Approximately 60 seconds; may take longer the farther the device is from the logger |
Approximately 60 seconds; may take longer the farther the device is from the logger |
Approximately 60 seconds; may take longer the farther the device is from the logger |
| LCD |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Battery Type |
Two AAA batteries, user replaceable |
Two AAA batteries, user replaceable |
Two AAA batteries, user replaceable |
Two AAA batteries, user replaceable |
Two AAA batteries, user replaceable |
Two AAA batteries, user replaceable |
| Battery Life |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
| Wireless Data Standard |
Bluetooth Low Energy (Bluetooth Smart) |
Bluetooth Low Energy (Bluetooth Smart) |
Bluetooth Low Energy (Bluetooth Smart) |
Bluetooth Low Energy (Bluetooth Smart) |
Bluetooth Low Energy (Bluetooth Smart) |
Bluetooth Low Energy (Bluetooth Smart) |
| Radio Power |
1 mW (0 dBm)
|
1 mW (0 dBm)
|
1 mW (0 dBm)
|
1 mW (0 dBm)
|
1 mW (0 dBm)
|
1 mW (0 dBm)
|
| Dimensions |
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
|
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
|
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
|
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
|
9.4 x 5.6 x 2.59 cm (3.7 x 2.21 x 1.02 inches)
|
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
|
